3-stage cartridge filter

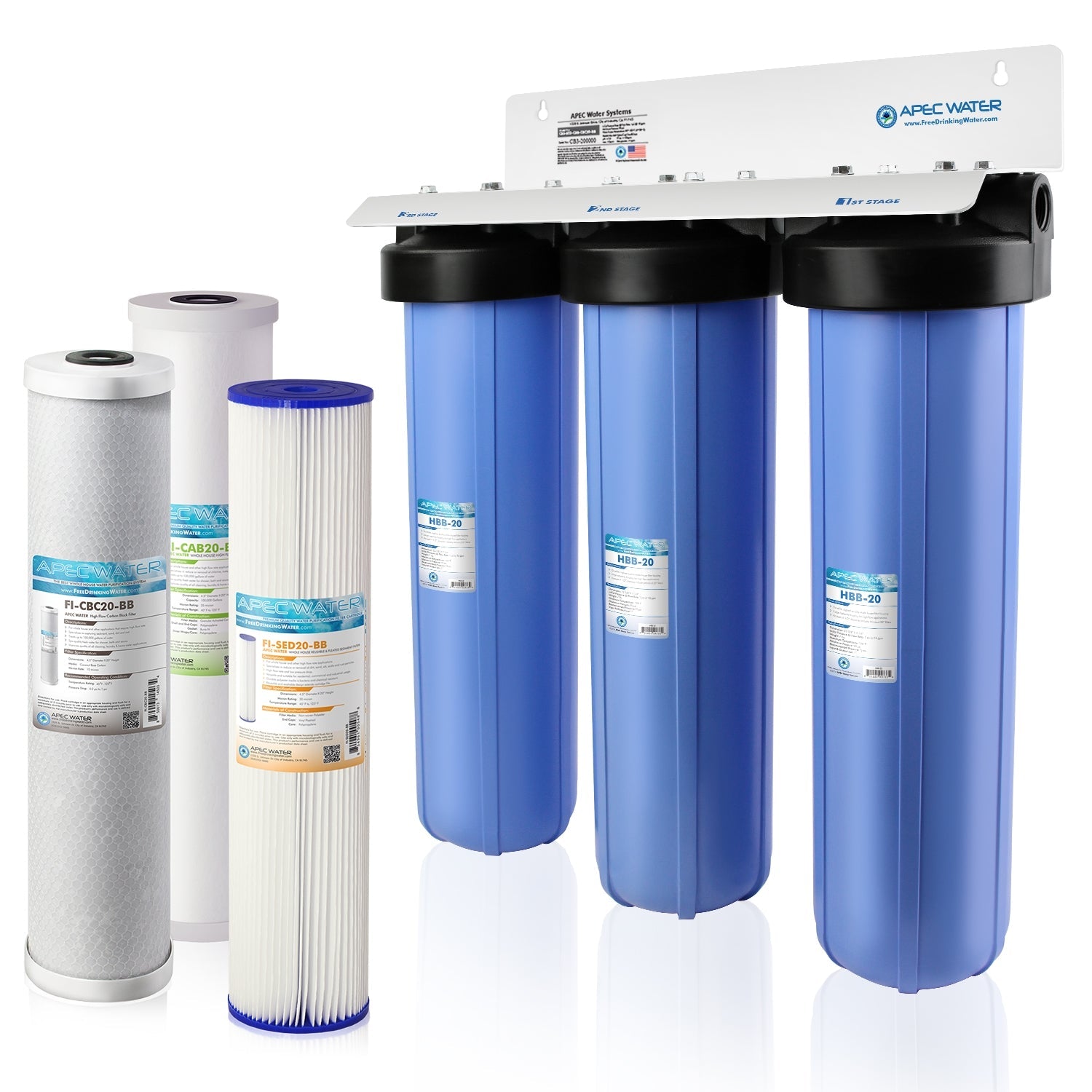

3-Stage Sediment/GAC/Carbon Whole House Filter

Homes that want a serviceable three-stage 20-inch Big Blue cartridge system focused on sediment plus chlorine, taste, odor and organic-compound adsorption, with both granular activated carbon and a final carbon-block polishing stage.

Purchases are made on the seller’s website, not FilterTier. Affiliate disclosure: some manufacturer or retailer links may earn FilterTier compensation at no additional cost to you.

3-Stage Sediment/GAC/Carbon Whole House Filter
83 / 100

TREATMENT CHAIN

Typical treatment stages — confirm this model's configuration.

① Pretreatment

Sediment or spin-down filtration protects downstream media when required.

② Main treatment

Illustrative only: the actual treatment technology and stage order depend on the model. Carbon, oxidation media, ion exchange, UV and other methods are not included unless the exact manufacturer configuration confirms them.

③ Optional stages

Softening, salt-free conditioning, UV or polishing filters may be separate components.

SERVICE FLOW
15 GPM published system test flow at 1 psi initial pressure drop

Rated / service flow

CURRENT PRICE
$399.00 — check availability

Last verified price

MAIN FILTER LIFE
APEC's current system page lists >70,000 gallons @ 4 GPM for the FI-CAB20-BB GAC stage and up to 100,000 gallons for the FI-CBC20-BB carbon-block stage. APEC's current replacement-set page lists >70,000 gallons @ 4 GPM for both carbon stages. Use the first limiting cartridge, source-water conditions and treatment performance rather than assuming a guaranteed 100,000-gallon interval.

Published replacement life

10-YEAR COST

What it actually treats

ContaminantResultEvidence
PFAS reduction
VOC reduction
Chlorine reduction
Chloramine reduction
Connection size1 in. FPT

Ownership reality

Maintain

Routine

Inspect the housings and monitor pressure drop and chlorine/taste/odor performance. The first-stage FI-SED20-BB pleated sediment cartridge is washable and reusable. Replace the GAC and carbon-block cartridges as their capacity is reached or treatment performance declines. APEC's current matched replacement set is FILTER-SET-CB3-CBC-20BB. Shut off and depressurize the housings before cartridge service and follow the owner manual.

Replace

Major

Normal major service is replacement of the three 20-inch Big Blue cartridges rather than the housings themselves. APEC's matched set is FILTER-SET-CB3-CBC-20BB, observed at $149.00 when checked. Because APEC's current system page and replacement-set page differ on the third-stage capacity wording, FilterTier uses the more conservative replacement logic: monitor the first limiting stage and actual treatment performance.

Covered

1-year APEC limited manufacturer warranty; this exact CB3-SED-CAB-CBC20-BB is listed as eligible for APEC's current registration program extending coverage to 2 years total when registered within 8 weeks, subject to program terms.

APEC's current warranty-registration terms list CB3-SED-CAB-CBC20-BB as an eligible model. The standard limited manufacturer warranty is one year; registering an eligible new system within eight weeks of purchase can extend APEC coverage to two years total (one-year manufacturer warranty plus one-year extension), subject to APEC's eligibility, purchase-channel and registration conditions.

FilterTier watchouts

APEC makes broad contaminant-reduction claims for this model, but FilterTier did not verify a current third-party contaminant-reduction certification for the exact CB3-SED-CAB-CBC20-BB system, so those claims should not be treated as equivalent to an NSF-certified reduction claim. The published 15 GPM figure is a system pressure-drop test point (1 psi at 15 GPM), while the carbon-stage capacities are specified at 4 GPM. APEC's current system page says the final carbon block is up to 100,000 gallons, while the current replacement-set page lists >70,000 gallons @ 4 GPM for that stage; this page flags that discrepancy instead of picking the larger number. APEC also specifies source-water limits including pH above 7, silica under 100 ppm, manganese under 1 ppm, iron under 3 ppm, and no iron bacteria or hydrogen sulfide.

WaterScore 83/100 is a calibrated review index. Underlying Research Index: 73/100. The fixed whole-home reference of 84 research points maps to 95; zero remains zero, and the remaining range maps to 100. Treatment facts, evidence credit and missing-data limitations are unchanged. This is not percent contaminant removal, a certification or a safety probability. Scoring methodology.

Where it is made

Exact-model manufacturing country not clearly disclosed

The current APEC CB3-SED-CAB-CBC20-BB product, replacement-set and warranty-registration materials reviewed do not clearly state the manufacturing or assembly country of this exact whole-house filter system.

What it actually costs

Near lowTypicalNear high

$399.00 — check availability

Equipment price for CB3-SED-CAB-CBC20-BB. Checked 2026-10-05. Source: https://www.apecwater.com/products/sediment-carbon-cbc

Think about your mechanical room

Before your plumber orders it, confirm:

  • Main-line size and connection diameter
  • Available service flow and incoming pressure
  • Drain requirement / backwash routing
  • Electrical outlet or UV/controller power
  • Tank/cartridge replacement clearance
  • Bypass and isolation valves
  • Pressure gauges before/after restrictive stages
  • Floor drain / leak protection where appropriate
02Treatment coverage
WHAT IT ACTUALLY TREATS

Contaminant performance and evidence.

PFAS REDUCTION
PFAS EVIDENCE
VOC REDUCTION
CHLORINE REDUCTION
CHLORAMINE REDUCTION
CONNECTION SIZE
1 in. FPT
03Ownership & maintenance
OWNERSHIP REALITY

What you replace, what it costs, and what the warranty actually covers.

01 · Maintain

Routine maintenance

Inspect the housings and monitor pressure drop and chlorine/taste/odor performance. The first-stage FI-SED20-BB pleated sediment cartridge is washable and reusable. Replace the GAC and carbon-block cartridges as their capacity is reached or treatment performance declines. APEC's current matched replacement set is FILTER-SET-CB3-CBC-20BB. Shut off and depressurize the housings before cartridge service and follow the owner manual.

02 · Replace

Major replacement

Normal major service is replacement of the three 20-inch Big Blue cartridges rather than the housings themselves. APEC's matched set is FILTER-SET-CB3-CBC-20BB, observed at $149.00 when checked. Because APEC's current system page and replacement-set page differ on the third-stage capacity wording, FilterTier uses the more conservative replacement logic: monitor the first limiting stage and actual treatment performance.

03 · Covered

Warranty details

APEC's current warranty-registration terms list CB3-SED-CAB-CBC20-BB as an eligible model. The standard limited manufacturer warranty is one year; registering an eligible new system within eight weeks of purchase can extend APEC coverage to two years total (one-year manufacturer warranty plus one-year extension), subject to APEC's eligibility, purchase-channel and registration conditions.

04 · Watch

FilterTier watchouts

APEC makes broad contaminant-reduction claims for this model, but FilterTier did not verify a current third-party contaminant-reduction certification for the exact CB3-SED-CAB-CBC20-BB system, so those claims should not be treated as equivalent to an NSF-certified reduction claim. The published 15 GPM figure is a system pressure-drop test point (1 psi at 15 GPM), while the carbon-stage capacities are specified at 4 GPM. APEC's current system page says the final carbon block is up to 100,000 gallons, while the current replacement-set page lists >70,000 gallons @ 4 GPM for that stage; this page flags that discrepancy instead of picking the larger number. APEC also specifies source-water limits including pH above 7, silica under 100 ppm, manganese under 1 ppm, iron under 3 ppm, and no iron bacteria or hydrogen sulfide.

WaterScore 83/100 is a calibrated review index. Underlying Research Index: 73/100. The fixed whole-home reference of 84 research points maps to 95; zero remains zero, and the remaining range maps to 100. Treatment facts, evidence credit and missing-data limitations are unchanged. This is not percent contaminant removal, a certification or a safety probability. Scoring methodology.

ANNUAL MAINTENANCE COST
10-YEAR COST
WARRANTY YEARS
1-year APEC limited manufacturer warranty; this exact CB3-SED-CAB-CBC20-BB is listed as eligible for APEC's current registration program extending coverage to 2 years total when registered within 8 weeks, subject to program terms.
04Origin & manufacturing

ORIGIN & MANUFACTURING

Where this system is actually made.

FilterTier distinguishes headquarters, design, manufacturing and final assembly. When an exact model's origin is not publicly confirmed, we say that instead of guessing.

MADE / ASSEMBLED IN

Exact-model manufacturing country not clearly disclosed

ORIGIN CONFIDENCE

Low

RESEARCH STATUS

Verified current APEC CB3-SED-CAB-CBC20-BB product page, FILTER-SET-CB3-CBC-20BB replacement page and warranty-registration terms: 3-stage 20-inch Big Blue architecture, 30-micron washable sediment + 25-micron GAC + 10-micron carbon block, 1-inch FPT, 1 psi system pressure-drop test at 15 GPM, current $399 sold-out status, replacement set at $149, carbon-stage capacity discrepancy documented, and 1-year standard/2-year registered warranty structure.

Origin detail

The current APEC CB3-SED-CAB-CBC20-BB product, replacement-set and warranty-registration materials reviewed do not clearly state the manufacturing or assembly country of this exact whole-house filter system.

MODEL / SKU

CB3-SED-CAB-CBC20-BB

WHY IT MATTERS

Country-of-origin can affect buyer preference, serviceability, parts availability and perceived manufacturing quality — but it is scored separately from filtration performance.

05Price & value

FILTERTIER PRICE TRACKER

What it actually costs — not what the fake sale badge says.

We track observed selling prices over time and compare today's price with the system's normal range. Crossed-out MSRP and perpetual “50% off” labels do not count as meaningful savings.

Where today’s price sitsCompared with the normal observed range
Near lowTypicalNear high

CURRENT OBSERVED PRICE

$399.00 — check availability

TYPICAL OBSERVED RANGE

PRICE POSITION

HISTORICAL LOW

PRICE CONFIDENCE

High

LAST CHECKED

October 5, 2026

How to read this price

Equipment price for CB3-SED-CAB-CBC20-BB. Checked 2026-10-05. Source: https://www.apecwater.com/products/sediment-carbon-cbc

A big “discount” does not automatically mean a good deal.

If a system is almost always sold at 40–55% off MSRP, FilterTier treats that sale price as the normal market price and judges value from there.

06Setup & fit

INSTALLATION CONTEXT

Think about the system in your mechanical room — not just on a product page.

Before your plumber orders it, confirm:

• Main-line size and connection diameter • Available service flow and incoming pressure • Drain requirement / backwash routing • Electrical outlet or UV/controller power • Tank/cartridge replacement clearance • Bypass and isolation valves • Pressure gauges before/after restrictive stages • Floor drain / leak protection where appropriate

FilterTier rule

The best treatment spec is still the wrong purchase if it cannot be installed, serviced, or supplied with enough flow in your actual house.

3-Stage Sediment/GAC/Carbon Whole House FilterAPEC Water3-stage cartridge filter8315 GPM published system test flow at 1 psi initial pressure dropHomes that want a serviceable three-stage 20-inch Big Blue cartridge system focused on sediment plus chlorine, taste, odor and organic-compound adsorption, with both granular activated carbon and a final carbon-block polishing stage.
