Iron/hydrogen-sulfide filter

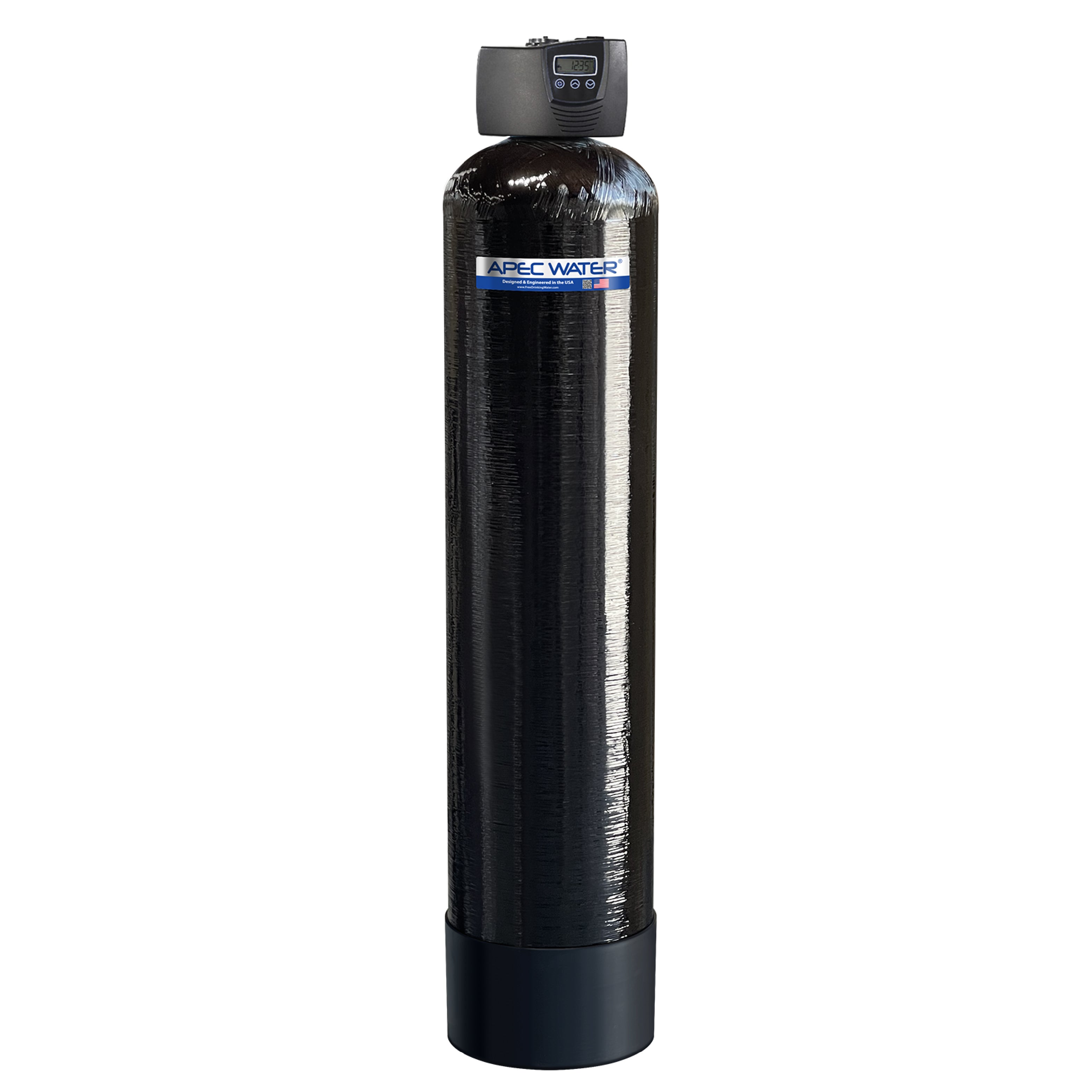

IRON-HYDRO-20

Large well-water homes with roughly five or more bathrooms and tested source water within APEC's published treatment envelope: up to 10 ppm iron, 3 ppm hydrogen sulfide, 5 ppm manganese and pH 5–9, with household demand compatible with the model's 12 GPM rating and enough pump capacity for its backwash demand.

Purchases are made on the seller’s website, not FilterTier. Affiliate disclosure: some manufacturer or retailer links may earn FilterTier compensation at no additional cost to you.

IRON-HYDRO-20
89 / 100

TREATMENT CHAIN

Typical treatment stages — confirm this model's configuration.

① Pretreatment

Sediment or spin-down filtration protects downstream media when required.

② Main treatment

Illustrative only: the actual treatment technology and stage order depend on the model. Carbon, oxidation media, ion exchange, UV and other methods are not included unless the exact manufacturer configuration confirms them.

③ Optional stages

Softening, salt-free conditioning, UV or polishing filters may be separate components.

SERVICE FLOW
12 GPM

Rated / service flow

CURRENT PRICE
$2,109.95 (sold out when checked)

Last verified price

MAIN FILTER LIFE
APEC states the MEDIA-IRON manganese-dioxide media can last up to 5+ years when properly backwashed or under lower contaminant loading; actual life depends strongly on iron/manganese/H2S concentration, ORP and backwash performance.

Published replacement life

10-YEAR COST

What it actually treats

ContaminantResultEvidence
PFAS reduction
VOC reduction
Chlorine reduction
Chloramine reduction
Connection size1 in. MNPT

Ownership reality

Maintain

Routine

IRON-HYDRO-20 uses an electronic time-clock/control valve and regular water-only backwashing, so it needs electrical power, a drain and sufficient well-pump/backwash capacity. Confirm the backwash cycle is operating correctly and monitor iron staining, sulfur odor, manganese symptoms and pressure. APEC says no chemical regenerant is required when source-water oxidation conditions are suitable, but its ORP guidance says water below -170 mV requires additional upstream oxidant.

Replace

Major

The MEDIA-IRON manganese-dioxide bed is the major long-cycle service item. APEC describes media life as up to 5+ years when properly backwashed or at lower contaminant concentrations, not as a guaranteed interval. High contaminant loading, inadequate backwash flow or unfavorable ORP can shorten media life or require pretreatment/oxidation.

Covered

APEC whole-house warranty: 10 years on tanks, valves, non-electric heads, bypasses and fittings; 5 years on applicable solid-state electronic heads.

APEC's current whole-house warranty covers IRON-HYDRO systems for 10 years on tanks, valves, in/out non-electric heads, bypasses and fittings and five years on solid-state electronic heads where applicable. Standard exclusions and claim conditions apply. The current IRON-HYDRO product page also advertises a 10-year limited warranty.

FilterTier watchouts

Start with a proper water test, ORP reading and well-pump/backwash-capacity check. APEC says IRON-HYDRO can operate without additional oxidants when ORP is above -170 mV, while readings below -170 mV require additional oxidation upstream. Treatment limits are manufacturer specifications, not unlimited removal guarantees. The WQA/NSF 61 statement on APEC's page applies to the media/material safety claim; it should not be read as a whole-system contaminant-reduction certification. This system does not soften hardness, and it requires electrical power, a drain and a published 10 GPM backwash flow at 60°F.

WaterScore 89/100 is a calibrated review index. Underlying Research Index: 79/100. The fixed whole-home reference of 84 research points maps to 95; zero remains zero, and the remaining range maps to 100. Treatment facts, evidence credit and missing-data limitations are unchanged. This is not percent contaminant removal, a certification or a safety probability. Scoring methodology.

Where it is made

Designed and engineered in the USA; exact assembly origin not clearly disclosed

APEC states its whole-house systems are designed and engineered in the USA, but current IRON-HYDRO-20-FG materials reviewed do not clearly state that the complete system is manufactured or assembled entirely in the USA.

What it actually costs

Near lowTypicalNear high

$2,109.95 (sold out when checked)

Manufacturer-direct APEC price observed at $2,109.95 on 2026-10-02; product page showed sold out when checked. FilterTier does not infer a discount from a missing/unclear regular price.

Think about your mechanical room

Before your plumber orders it, confirm:

  • Main-line size and connection diameter
  • Available service flow and incoming pressure
  • Drain requirement / backwash routing
  • Electrical outlet or UV/controller power
  • Tank/cartridge replacement clearance
  • Bypass and isolation valves
  • Pressure gauges before/after restrictive stages
  • Floor drain / leak protection where appropriate
02Treatment coverage
WHAT IT ACTUALLY TREATS

Contaminant performance and evidence.

PFAS REDUCTION
PFAS EVIDENCE
VOC REDUCTION
CHLORINE REDUCTION
CHLORAMINE REDUCTION
CONNECTION SIZE
1 in. MNPT
03Ownership & maintenance
OWNERSHIP REALITY

What you replace, what it costs, and what the warranty actually covers.

01 · Maintain

Routine maintenance

IRON-HYDRO-20 uses an electronic time-clock/control valve and regular water-only backwashing, so it needs electrical power, a drain and sufficient well-pump/backwash capacity. Confirm the backwash cycle is operating correctly and monitor iron staining, sulfur odor, manganese symptoms and pressure. APEC says no chemical regenerant is required when source-water oxidation conditions are suitable, but its ORP guidance says water below -170 mV requires additional upstream oxidant.

02 · Replace

Major replacement

The MEDIA-IRON manganese-dioxide bed is the major long-cycle service item. APEC describes media life as up to 5+ years when properly backwashed or at lower contaminant concentrations, not as a guaranteed interval. High contaminant loading, inadequate backwash flow or unfavorable ORP can shorten media life or require pretreatment/oxidation.

03 · Covered

Warranty details

APEC's current whole-house warranty covers IRON-HYDRO systems for 10 years on tanks, valves, in/out non-electric heads, bypasses and fittings and five years on solid-state electronic heads where applicable. Standard exclusions and claim conditions apply. The current IRON-HYDRO product page also advertises a 10-year limited warranty.

04 · Watch

FilterTier watchouts

Start with a proper water test, ORP reading and well-pump/backwash-capacity check. APEC says IRON-HYDRO can operate without additional oxidants when ORP is above -170 mV, while readings below -170 mV require additional oxidation upstream. Treatment limits are manufacturer specifications, not unlimited removal guarantees. The WQA/NSF 61 statement on APEC's page applies to the media/material safety claim; it should not be read as a whole-system contaminant-reduction certification. This system does not soften hardness, and it requires electrical power, a drain and a published 10 GPM backwash flow at 60°F.

WaterScore 89/100 is a calibrated review index. Underlying Research Index: 79/100. The fixed whole-home reference of 84 research points maps to 95; zero remains zero, and the remaining range maps to 100. Treatment facts, evidence credit and missing-data limitations are unchanged. This is not percent contaminant removal, a certification or a safety probability. Scoring methodology.

ANNUAL MAINTENANCE COST
10-YEAR COST
WARRANTY YEARS
APEC whole-house warranty: 10 years on tanks, valves, non-electric heads, bypasses and fittings; 5 years on applicable solid-state electronic heads.
04Origin & manufacturing

ORIGIN & MANUFACTURING

Where this system is actually made.

FilterTier distinguishes headquarters, design, manufacturing and final assembly. When an exact model's origin is not publicly confirmed, we say that instead of guessing.

MADE / ASSEMBLED IN

Designed and engineered in the USA; exact assembly origin not clearly disclosed

ORIGIN CONFIDENCE

Medium

RESEARCH STATUS

Verified current APEC IRON-HYDRO-20-FG product page and whole-house warranty: 5+ bathroom positioning, 12 GPM, 1-inch MNPT, MEDIA-IRON high-manganese-dioxide bed, published 10 ppm iron / 3 ppm H2S / 5 ppm manganese treatment limits, pH 5–9, ORP threshold, 10 GPM backwash at 60°F, power + drain requirements, up-to-5+ year media-life statement, current $2,109.95 sold-out status and split 10-year/5-year component warranty.

Origin detail

APEC states its whole-house systems are designed and engineered in the USA, but current IRON-HYDRO-20-FG materials reviewed do not clearly state that the complete system is manufactured or assembled entirely in the USA.

MODEL / SKU

IRON-HYDRO-20-FG

WHY IT MATTERS

Country-of-origin can affect buyer preference, serviceability, parts availability and perceived manufacturing quality — but it is scored separately from filtration performance.

05Price & value

FILTERTIER PRICE TRACKER

What it actually costs — not what the fake sale badge says.

We track observed selling prices over time and compare today's price with the system's normal range. Crossed-out MSRP and perpetual “50% off” labels do not count as meaningful savings.

Where today’s price sitsCompared with the normal observed range
Near lowTypicalNear high

CURRENT OBSERVED PRICE

$2,109.95 (sold out when checked)

TYPICAL OBSERVED RANGE

PRICE POSITION

HISTORICAL LOW

PRICE CONFIDENCE

LAST CHECKED

October 2, 2026

How to read this price

Manufacturer-direct APEC price observed at $2,109.95 on 2026-10-02; product page showed sold out when checked. FilterTier does not infer a discount from a missing/unclear regular price.

A big “discount” does not automatically mean a good deal.

If a system is almost always sold at 40–55% off MSRP, FilterTier treats that sale price as the normal market price and judges value from there.

06Setup & fit

INSTALLATION CONTEXT

Think about the system in your mechanical room — not just on a product page.

Before your plumber orders it, confirm:

• Main-line size and connection diameter • Available service flow and incoming pressure • Drain requirement / backwash routing • Electrical outlet or UV/controller power • Tank/cartridge replacement clearance • Bypass and isolation valves • Pressure gauges before/after restrictive stages • Floor drain / leak protection where appropriate

FilterTier rule

The best treatment spec is still the wrong purchase if it cannot be installed, serviced, or supplied with enough flow in your actual house.

IRON-HYDRO-20APEC WaterIron/hydrogen-sulfide filter8912 GPMLarge well-water homes with roughly five or more bathrooms and tested source water within APEC's published treatment envelope: up to 10 ppm iron, 3 ppm hydrogen sulfide, 5 ppm manganese and pH 5–9, with household demand compatible with the model's 12 GPM rating and enough pump capacity for its backwash demand.
